2015 Honda XR125L specifications, pictures, reviews and rating

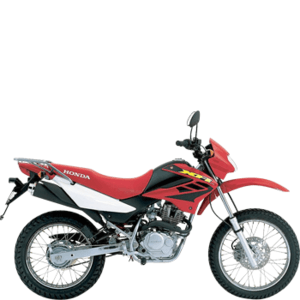

2015 Honda XR125L. Picture credits - Honda. Submit more pictures.
2015 Honda XR125L
Discuss this bike Rate this motorbike This bike's rating Write a review Sell this motorcycle Such bikes for sale Insurance quotes Finance options Tip a friend List related bikes
Download or purchase Honda Engine owners' manuals for the GX120. Honda goldwing service manual. Honda cbr1100 service manual. Bluetooth for apple mac. Honda xr250r owners manual. NOTE: This is a huge site and contains almost every Honda service manual ever produced, if you do not get results from the searh box you may have to try a different combination of words. Sometimes it is best not to enter. Hey guys - this is my 1st post so be gentle haha - Ok so I have a lovely 2004 XR125-L which I use to get me to work and back every day and I enjoy a bit of light off roading with it, the bike has always ran sweet as a nut, I gave it an oil change about 800 miles ago and I never really abuse.
Honda's profilation of this bike
Take on bigger road challenges with the new Honda XR125L. It´s enough to keep you riding on or off the road.
Read and Download Ebook Honda Xr 125 06 Manual PDF at Public Ebook Library HONDA XR 125 06 MANUAL PDF DOWNLOAD: HONDA XR 125 06 MANUAL PDF Now welcome, the most inspiring book today from a very professional writer in the world, Honda Xr 125 06 Manual. Free download mac for pc. This is the book that many people in the world waiting for to publish. XR125/150LEK, XL125LEK ADDENDUM IGNITION SYSTEM SPECIFICATIONS ENGINE (XR125LEK/ XL125LEK) Bore and stroke 52.4 x 57.8 mm (2.06 x 2.28 in) Displacement 124.7 cm3 (7.61 cu-in) Valve train Chain driven, OHC 2-valve with rocker arm Compression ratio 9.2: 1 Intake valve opens at 1 mm (0.04 in) lift 5° BTDC closes at 1 mm (0.04 in) lift 30° ABDC XL125LEK.
General information
Model:
Honda XR125L
Year:
2015
Category:
Enduro / offroad
Rating:
2.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement:
125.0 ccm (7.63 cubic inches)
Engine type:
Single cylinder, four-stroke
Torque:
10.4 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 6500 RPM
Compression:
9.2:1
Bore x stroke:
52.4 x 57.8 mm (2.1 x 2.3 inches)
Valves per cylinder:
4
Fuel system:
Carburettor. 20mm piston-valve
Fuel control:
Overhead Valves (OHV)
Cooling system:
Air
Gearbox:
5-speed
Transmission type, final drive:
Chain
Chassis, suspension, brakes and wheels
Front suspension:
Telescopic fork
Front wheel travel:
160 mm (6.3 inches)
Rear suspension:
Swingarm, monoshock
Rear wheel travel:
151 mm (5.9 inches)
Front tyre:
90/90-19
Rear tyre:
110/90-17
Front brakes:
Single disc. Dual-piston calliper
Diameter:
240 mm (9.4 inches)
Rear brakes:
Expanding brake (drum brake)
Wheels:
Wire spoked
Physical measures and capacities
Dry weight:
119.0 kg (262.4 pounds)
Seat height:
825 mm (32.5 inches) If adjustable, lowest setting.
Overall height:
1126 mm (44.3 inches)
Overall length:
2100 mm (82.7 inches)
Overall width:
820 mm (32.3 inches)
Wheelbase:
1450 mm (57.1 inches)
Fuel capacity:
12.00 litres (3.17 gallons)
Reserve fuel capacity:
3.50 litres (0.92 gallons)
Oil capacity:
1.00 litres (0.07 quarts)
Other specifications
Color options:
Red, black
Starter:
Electric & kick
Comments:
Sold in Australia and Asia.
Further information
Insurance costs
Compare US insurance quotes from the nation's top providers.
Finance options
Compare US motorcycle loan quotes from the nation's top providers.
Parts finder
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Dirt-bike parts
Dirt-bike parts and gear available from Mega Motor Madness. Ships to most countries.
Ask questions
Join the 15 Honda XR125L discussion group or the general Honda discussion group.
Related bikes
List related bikes for comparison of specs.
Technical issues with this bike
Bikez.com has a discussion group for every motorcycle. Here you may find answers to common questions about the model. If you do not find what you are looking for, you can ask questions. Try out the 2015 Honda XR125L discussion forum. You can sign up for e-mail notifications when other users answer you. If you have information about any technical issue related to this motorcycle, please leave a comment for other riders.
Rating sample for this Honda bike
Racing track capabilities for the 2015 Honda XR125L: (49.6 out of 100) Click here for complete rating. You can also compare bikes.
Pictures, trademarks and logos of third parties are the exclusive property of the respective owners. Technical specifications are subject to change without notice. Bikez.com has been developed by low-cost software development company ObjectLabs.
Browse bikes
Top bikes
Tools
Forums
2007 Honda XR 125 specifications, pictures, reviews and rating
More pictures.. Discuss this bike Rate this motorbike This bike's rating Write a review Sell this motorcycle Such bikes for sale Insurance quotes Finance options Tip a friend List related bikes
Honda's profilation of this bike
Honda´s small but exciting XR125L combines quick, light-handling ´urban scrambler´ agility for cutting swiftly through city traffic with versatile off-road riding capability.
Honda Xr 150 For Sale
Honda Xr 125 Price
General information
Model:
Honda XR 125
Year:
2007
Category:
Enduro / offroad
Rating:
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement:
124.0 ccm (7.57 cubic inches)
Engine type:
Single cylinder, four-stroke
Power:
15.0 HP (10.9 kW)) @ 8500 RPM
Torque:
10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 7000 RPM
Compression:
9.5:1
Bore x stroke:
56.5 x 49.5 mm (2.2 x 1.9 inches)
Fuel system:
Carburettor
Fuel control:
Overhead Valves (OHV)
Ignition:
Digital transistorised with electronic advance
Cooling system:
Air
Gearbox:
5-speed
Transmission type, final drive:
Chain
Chassis, suspension, brakes and wheels
Front suspension:
31mm telescopic fork, 180mm axle travel
Rear suspension:
Monoshock damper, 160mm axle travel
Front brakes:
Double disc
Diameter:
240 mm (9.4 inches)
Rear brakes:
Expanding brake (drum brake)
Diameter:
110 mm (4.3 inches)
Physical measures and capacities
Dry weight:
115.5 kg (254.6 pounds)
Power/weight ratio:
0.1299 HP/kg
Seat height:
820 mm (32.3 inches) If adjustable, lowest setting.
Overall length:
2060 mm (81.1 inches)
Ground clearance:
250 mm (9.8 inches)
Fuel capacity:
12.00 litres (3.17 gallons)
Other specifications
Starter:
Electric
Further information
Insurance costs
Compare US insurance quotes from the nation's top providers.
Finance options
Compare US motorcycle loan quotes from the nation's top providers.
Parts finder
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Dirt-bike parts
Dirt-bike parts and gear available from Mega Motor Madness. Ships to most countries.
Ask questions
Join the 07 Honda XR 125 discussion group or the general Honda discussion group.
Related bikes
List related bikes for comparison of specs.
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2007 Honda XR 125 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.
Rating sample for this Honda bike
Engine performance for the 2007 Honda XR 125: (65.9 out of 100) Click here for complete rating. You can also compare bikes.
